Demineralisation by Reverse Osmosis

Request a Quote

Standard: Permeate flow from 600 to 10,000 litres per hour
Specific: Tailored to your demand

BWO Demineralisation by Reverse Osmosis is a water purification technology using semi-selective membranes and an external pressure to reverse the natural flow of pure solvent.

BWO has been designed to effectively remove many types of dissolved and suspended species from water such as ions, molecules, bacteria or larger particles. It uses low energy membranes and includes fully automated equipment and a configurable PLC (Programmable Logic Controller) for safety and alarm management.

Babcock Wanson has developed a whole range of reverse osmosis equipment which makes it possible to meet and optimise the needs of industry. The standard series provides a permeate flow from 600 to 10,000 litres per hour. Our specific range is tailored to your demand.

Category:

BWO application in industries

  • Process water purification – BWO can be applied to purify process water such as required for surface treatment or in cosmetics laboratories, etc.
  • Boiler feed purification – BWO can also be applied for boiler feed treatment. The purified water produced by BWO allows to reduce the volume of blowdown purge from the boiler to circa 1% thereby ensuring good operation of the steam generating plant and minimising energy loss from the process.

Flexible and complete range

  • BWO Demineralisation by Reverse Osmosis is available as both vertical and horizontal skid assemblies depending on the permeate flow. This feature ensures simple and quick site installation.
  • Standard range from 600 l/h to 10,000 l/h plus specific permeate flow duties on demand.
  • Permeate conductivity of less than 1 μS/cm can be achieved.
  • The specific range is tailored to your demand and is adapted for minimum floor space requirements.

Safe and reliable equipment

  • Automatic bypass option of the osmosis unit ensures safest operation for your process and steam production.
  • BWO make it possible to assure tailored water quality and to meet your specific needs.
  • The overall energy ratio is significantly improved
  • Return of investment is very high.

Simple maintenance

  • BWO includes membranes protection mechanism without additional installation cost.
  • BWO mixing valves help economise on water treatment products.

Environmentally Friendly

  • BWO Demineralisation by Reverse Osmosis ensures efficient use of resources, simple maintenance and compliance with environmental standards.
  • BWO has a low environmental impact due to absence of chemical reagents.

Demineralisation by Reverse Osmosis

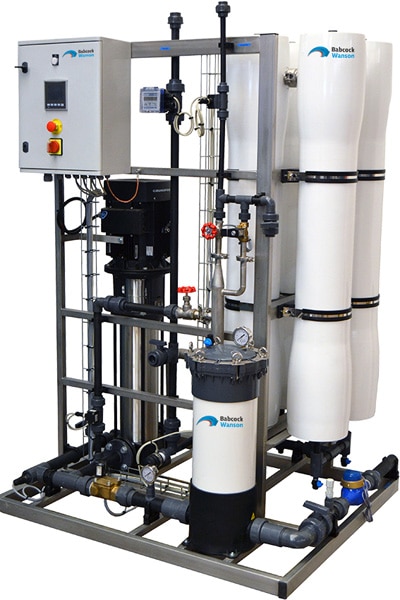

Vertical Model

TPC-B Model BWOV 600 BWOV 900 BWOV 1500 BWOV 2100 BWOV 3000 BWOV 4500 BWOV 5500
Permeat Rate at 15°C l/h 600 900 1500 2100 3000 4500 5500
Feed Rate l/h 800 1200 2000 2800 4000 6000 7333
Width mm 900 900 1700 1700 1500 1500 1500
Length mm 560 560 560 560 1100 1100 1100
Height mm 1500 1500 1700 1700 2100 2100 2100

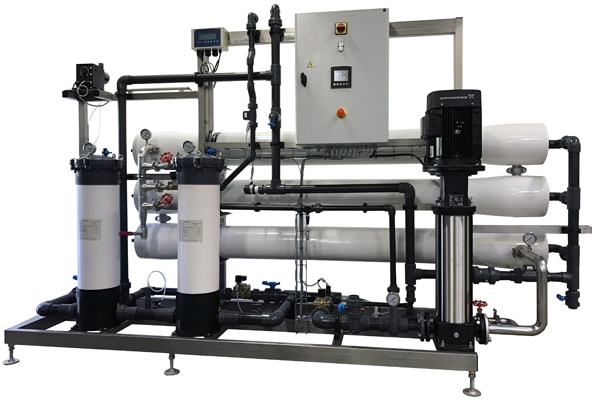

Horizontal Model

TPC-B Model BWOH 3000 BWOH 3500 BWOH 4500 BWOH 5500 BWOH 7500 BWOH 10000
Permeat Rate at 15°C l/h 3000 3500 4500 5500 7500 10000
Feed Rate l/h 4000 4667 6000 7333 10000 13333
Width mm 2600 3600 3600 3000 3000 3000
Length mm 600 600 600 1000 1000 1000
Height mm 1600 1600 1600 2100 2100 2100
